Stainless Steel Sheet & Plate Stockholder, Supplier in Mumbai, India

Stainless Steel Sheet & Plate
Stockholder, Supplier & Exporter

We are the largest stockholder, supplier, & exporter of stainless steel sheet & plate in Mumbai, India. Our stainless steel offerings include sheet, plate, sim, foil, coil, flat, and circle forms that are carefully crafted with precision and attention to detail. These sheets and plates are available in different grades, thicknesses, and specifications. Our stainless steel products offer unparalleled performance, making them ideal choices for various industrial sectors, such as the construction and automotive industries. Rajgranth Metals & Alloys is a renowned SS sheet & plate supplier & exporter in Saudi Arabia, Africa, North America, Europe, Asia, & South America.

Get A Quote NOW

Stainless Steel Sheet & Plate
Product	Stainless Steel Sheet & Plate
Grade	201, 202, J3, 303, 304, 304L, 304LN, 304H, 309, 310, 316, 316L, 316LN, 316H, 316TI, 317, 317L, 317LN, 321, 321H, 347, 347H, 904, 904L, duplex & super duplex SA240 UNS NO. S31803 , S32205 , S32550 , S32750 , S32760, SMO 254, 17-4PH, Alloy 20, and more grade as per requirment.
Specifications	AISI - ASTM - EN - JIS
Size	1000mm, 1240mm, 2000mm, Standard & Non-standard Size
Thickness	0.1mm - 40mm
Length	2000mm, 2500mm, 3000mm, Standard & Non-standard Size
Surface Finish	2B , BA , NO.8 , CR , HR , MATE PVC
Shape	Sim , Foil , Coil , Sheet , Plate , Flat.
Available Make	JINDAL , TATA , SAIL , POSCO , TISCO , THYSSENKRUPP , ACERINOX , COLOMBUS STAINLESS

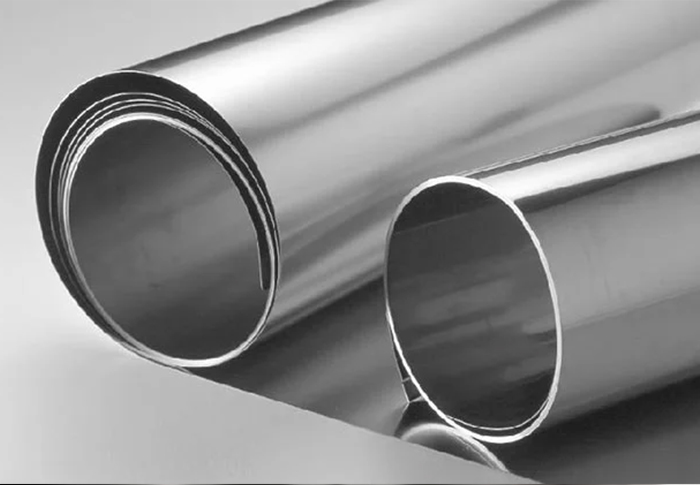

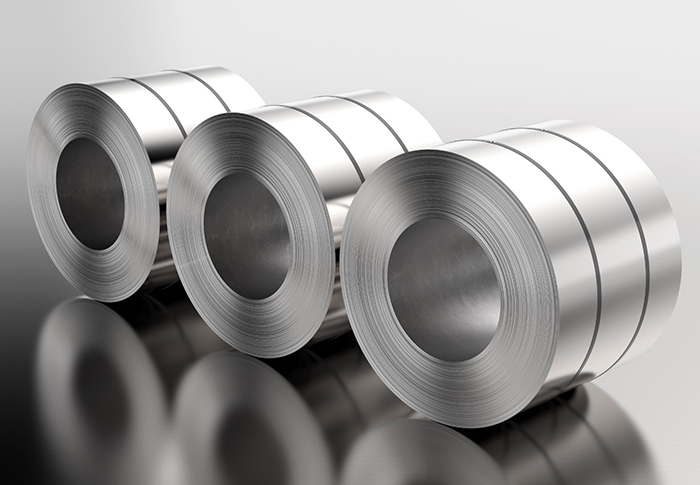

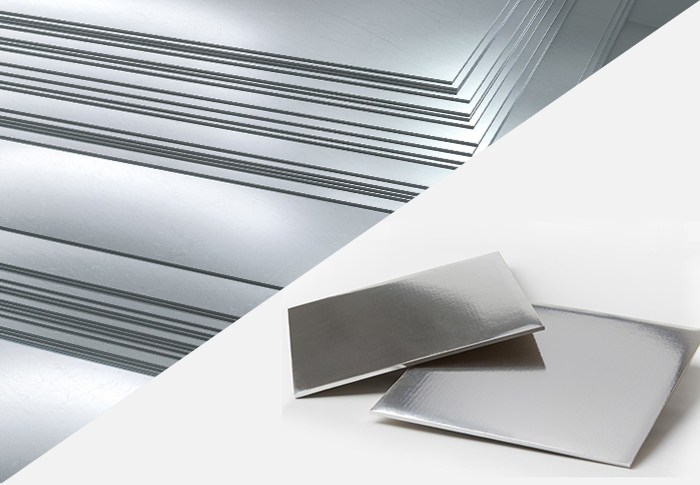

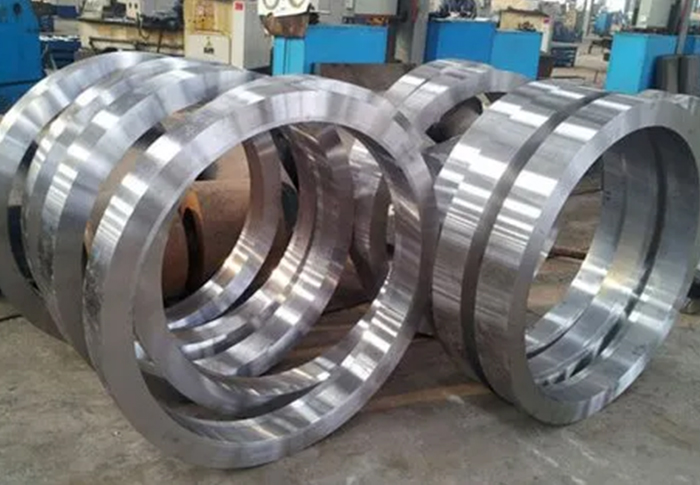

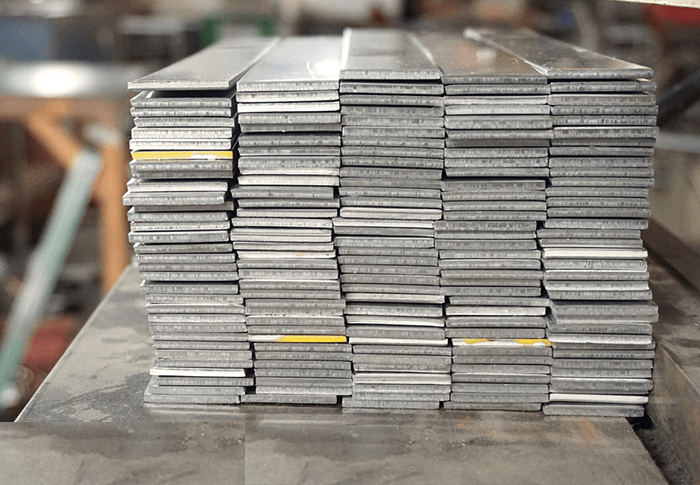

Stainless Steel Sim , Foil , Coil , Sheet , Plate , Flat , Circle

We are Stock Holder , Supplier & Expoter of Stainless Steel Sim , Foil , Coil , Sheet , Plate , Flat , Circle

Wall Thickness (MM)

0.1mm , 0.2mm , 0.3mm , 0.4mm , 0.5mm , 0.6mm , 0.8mm , 0.9mm , 1.0mm , 1.2mm, 1.5mm , 2.0mm , 2.2mm , 2.5mm , 2.8mm , 3mm , 3.5mm , 4mm , 5mm , 6mm , 8mm , 10mm , 12mm , 15mm , 16mm , 18mm , 20mm , 22mm , 25mm , 28mm , 30mm , 32mm , 36mm , 38mm , 40mm , 45mm , 50mm , 60mm

Stainless Steel Sheet and Plate Technical Data

Stainless Steel Sheet and Plate Dimension – (S.S. Sheet and Plate)
Wall thickness in mm.	0.5	0.6	0.7	0.8	1	1.2	1.6	2	2.6	3	3.2	3.6
O.D. in mm.	Weight in kg/meter
6	0.069	0.081	0.093	0.104	0.125	0.144	0.176	–	–	–	–	–
9.52	0.112	0.134	0.154	0.174	0.213	0.249	0.317	–	–	–	–	–
10	0.119	0.141	0.163	0.184	0.225	0.264	0.336	–	–	–	–	–
12.7	0.153	0.182	0.21	0.238	0.293	0.345	0.444	–	–	–	–	–
14	0.169	0.201	0.233	0.264	0.325	0.384	0.496	–	–	–	–	–
15.87	0.192	0.229	0.266	0.301	0.372	0.44	0.571	0.694	–	–	–	–
19	0.231	0.276	0.32	0.364	0.45	0.534	0.696	0.85	1.066	1.2	1.264	–
25	0.306	0.366	0.425	0.484	0.6	0.714	0.936	1.15	1.456	1.65	1.744	1.926
25.4	0.311	0.372	0.432	0.492	0.61	0.726	0.952	1.17	1.482	1.68	1.776	1.962
31.8	–	–	–	–	–	0.918	1.208	1.49	1.898	2.16	2.288	2.538
38	–	–	–	–	–	1.104	1.456	1.8	2.301	2.625	2.784	3.096
44.5	–	–	–	–	–	1.299	1.716	2.125	2.724	3.113	3.304	3.681
50.8	–	–	–	–	–	1.488	1.968	2.44	3.133	3.585	3.808	4.248
63.5	–	–	–	–	–	–	2.476	3.075	3.959	4.538	4.824	5.391
76.1	–	–	–	–	–	–	2.98	3.705	4.778	5.483	5.832	6.525
101.6	–	–	–	–	–	–	4	4.98	6	7	7,872	8.82

* Thickness of 1.27mm & below will have elongation of 20% min.
CHEMICAL COMPOSITION ( IN PERCENTAGE )
Grade	C (Max)	Mn (Max)	P (Max)	S (Max)	Si (Max)	Cr	Ni	Mo	Nitrogen (Max)	Cu/ Others
301	0.15	2	0.045	0.03	1	16.00 – 18.00	6.00 – 8.00	–	0.1	–
304	0.08	2	0.045	0.03	0.75	18.00 – 20.00	8.00- 10.50	–	0.1	–
304L	0.03	2	0.045	0.03	0.75	18.00 – 20.00	8.00- 12.00	–	0.1	–
310S	0.08	2	0.045	0.03	1.5	24.00- 26.00	19.00 – 22.00	–	–	–
316	0.08	2	0.045	0.03	0.75	16.00 – 18.00	10.00 – 14.00	2.00 – 3.00	0.1	–
316L	0.03	2	0.045	0.03	0.75	16.00 – 18.00	10.00 – 14.00	2.00 – 3.00	0.1	–
317	0.08	2	0.045	0.03	0.75	18.00 – 20.00	11.00 – 14.00	3.00 – 4.00	0.1	–
317L	0.03	2	0.045	0.03	0.75	18.00 – 20.00	11.00 – 15.00	3.00 – 4.00	0.1	–
321	0.08	2	0.045	0.03	0.75	17.00 – 19.00	9.00 – 12.00	–	0.1	Ti5 ( C + N ) Min or 0.70 max
347	0.08	2	0.045	0.03	0.75	17.00 – 19.00	9.00 – 13.00	–	–	Cb= 10x ( C Min ) or 1.00 Max
409	0.08	1	0.04	0.01	1	10.50 – 11.75	0.5	–	–	Ti= 6x (C+ N ) Min or 0.70 Max
409M	0.03	0.81.2	0.03	0.03	0.40.75	11.00- 12.00	1.5 max.	–	–	Ti= 6x (C) Min or 0.70 Max
410S	0.08	1	0.04	0.03	1	11.50- 13.50	0.6	–	–	–
410	0.15	1	0.04	0.03	1	11.50- 13.50	0.75	–	–	–
420	0.35	0.5	0.035	0.015	0.5	12.00 – 13.00	0.20.3	–	–	–
430	0.12	1	0.04	0.03	1	16.00 – 18.00	0.75	–	–	–
JSL AUS	0.08	7.08.0	0.07	0.03	0.75	15.50 – 16.50	4.25 – 4.75	–	–	0.9 – 1.10
JS- 203	0.08	9.2510.25	0.07	0.03	0.75	14.25 – 15.25	2.25 – 2.75	–	–	1.60- 2.0
301M	0.1	4.55.5	0.06	0.03	0.75	14.50 – 15.50	6.0 – 7.0	–	–	1.70- 1.90

Stainless steel grades listed in the international standard ISO 15510:2010
Type	ISO Designation	EN	UNS	AISI	JIS	GB
A	X8NiCrAlTi32-21	1.4876	N08800	800	NCF800
A	X7NiCrAlTi33-21	1.4959	N08810	800H	NCF800H
A	X1NiCrMoCu25-20-5	1.4539	N08904	904L	SUS890L	S39042
A	X12CrMnNiN17-7-5	1.4372	S20100	201	SUS201	S35350
A	X12CrMnNiN18-9-5	1.4373	S20200	202	SUS202	S35450
A	X2CrNiN18-7	1.4318	S30153	301LN	SUS301L	S30153
A	X5CrNi17-7	1.4319	S30100	301	SUS301	S30110
A	X10CrNi18-8	1.4310	S30100	301		S30110
A	X12CrNiSi18-9-3	1.4326()	S30215	302Si	SUS302B	S30240
A	X9CrNi18-9	1.4325	S30200	302	SUS302	S30210
A	X12CrNiCuS18-9	1.4667()[1.4570]	303Cu	SUS303Cu
A	X12CrNiSe18-9	1.4625()	S30323	303Se	SUS303Se	S30327
A	X10CrNiS18-9	1.4305	S30300	303	SUS303	S30317
A	X6CrNiCuS18-9-2	1.4570	S30331	303Cu+
A	X3CrNiCu18-9-4	1.4567	S30430		SUSXM7	S30488
A	X6CrNiSiNCe19-10	1.4818	S30415			S30450
A	X6CrNiCu17-8-2	1.4567			SUS304J1	S30480
A	X2CrNiN18-9	1.4311	S30453	304LN	SUS304LN	S30453
A	X2CrNiCu19-10	1.4650		304LCu	SUS304L	S30403
A	X7CrNi18-9	1.4948	S30409	304H		S30409
A	X6CrNiCu18-9-2	1.4567	S30431	304Cu	SUS304J3	S30480
A	X6CrNiCu19-9-1	1.4649()		304Cu	SUS304Cu	S30488
A	X5CrNiN19-9	1.4315	S30451	304N	SUS304N1	S30458
A	X2CrNi19-11	1.4306	S30403	304L	SUS304L	S30403
A	X2CrNi18-9	1.4307,[1.4306]	S30403	304L	SUS304L	S30403
A	X5CrNi18-9	1.4301	S30400	304	SUS304	S30408
A	X4CrNiMoN25-14-1	1.4496()			SUS317J2
A	X18CrNi23-13	1.4833	S30908	309S	SUH309	S30908
A	X6CrNi23-13	1.4950	S30908	309S	SUS309S	S30908
A	X8CrNi25-21	1.4845	S31008	310S	SUS310S	S31008
A	X23CrNi25-21	1.4845	S31008	310S	SUH310	S31020
A	X6CrNi25-20	1.4951	S31008	310S	SUS310S	S31008
A	X1CrNiMoCuN20-18-7	1.4547	S31254		SUS312L	S31252
A	X6CrNiMoCu18-12-2-2	1.4665()			SUS316J1
A	X6CrNiMoTi17-12-2	1.4571	S31635		SUS316Ti	S31668
A	X2CrNiMo17-12-3	1.4432	S31603		SUS316L	S31603
A	X2CrNiMoN17-12-3	1.4429	S31653	316LN	SUS316LN	S31653
A	X2CrNiMoN17-11-2	1.4406	S31653	316LN	SUS316LN	S31653
A	X6CrNiMoN17-12-3	1.4495()	S31651	316N	SUS316N	S31658
A	X2CrNiMo18-14-3	1.4435	S31603	316L	SUS316L	S31603
A	X2CrNiMo17-12-2	1.4404	S31603	316L	SUS316L	S31603
A	X6CrNiMoS17-12-3	1.4494()	S31620	316F	SUS316F
A	X5CrNiMo17-12-2	1.4401	S31600	316	SUS316	S31608
A	X3CrNiMo17-12-3	1.4436	S31600	316	SUS316	S31608
A	X3CrNiMo18-16-5	1.4476()			SUS317J1	S31794
A	X2CrNiMo19-14-4	1.4438	S31703		SUS317L	S31703
A	X6CrNiMo19-13-4	1.4445()	S31700	317	SUS317	S31708
A	X2CrNiMoN18-12-4	1.4434	S31753	317LN	SUS317LN	S31753
A	X7CrNiTi18-10	1.4940,1.4541	S32109	321H	SUS321H	S32169
A	X6CrNiTi18-10	1.4541	S32100	321	SUS321	S32168
A	X7CrNiNb18-10	1.4912	S34709	347H	SUS347H
A	X6CrNiNb18-10	1.4550	S34700	347	SUS347	S34778
A	X3NiCr18-16	1.4389()	S38400	384	SUS384	S38408
A PH	X6NiCrTiMoVB25-15-2	1.4980,1.4606	S66286()	660	SUH660	S51525
AF	X2CrNiMoN25-7-3	1.4481()	S31260		SUS329J4L	S22583
AF	X2CrNiMoN22-5-3	1.4462	S32205,S3	F51,F60	SUS329J3L	S22053
AF	X2CrNiN23-4	1.4362	S32304			S23043
AF	X3CrNiMoCuN26-6-3-2	1.4507	S32550			S25554
AF	X2CrNiMoCuWN25-7-4	1.4501	S32760			S27603
AF	X6CrNiMo26-4-2	1.4480()	S32900	329	SUS329J1
A:austenitic	F:ferritic	AF: austenitic- ferritic	":'AISI like' common name	() EN nb issued for ISO grade	-C Chinese based composition	-I genuine ISO composition
(1)	The ISO name is composed of 4 parts structure XXXX-YYY-ZZ-T					-U USA based composition
XXXX is a remindr of the European coding, YYY a reminder of the old AISI codes, ZZ an ISO coding and T an additional information
